Linkable T5 LED Lighting & Accessories - High, even light output. Available with 3000K (Warm White), 4100K (Cool White), and 6400K (Day Light). Virtually no heat emission, no ultraviolet radiation, and low energy consumption.
* Perfect for installation in showcases, displays or furniture. The T5 LED Fixture comes in five different sizes (1’, 2’, 3’, 4', and 5').
cabLED & Accessories
LED Cabinet and Display lights - High quality finish, all metal construction, and superior light output (Rated for 50,000 hrs). Complete 3-light kit includes driver & all necessary connector and wires. * cabLED comes in five different finishes (Brushed Nickel, Chrome, White, and Black)
Choose your Linkable T5 LED Length Now! Available in 5 Different Lengths from 1' to 5'
Choose your cabLED Now! Power supplies and accessories
T5 LED 5 Watt Linkable Fixture (1ft) LED T5 light fixture. Integrated LED driver, just plug-in & lit. No other power supply or accessories needed.
Conforms to UL Std. 153, ETL Listed. 5 watt LED T5 comparable to 8 watt T5 Microfluorescent
SKU #
Color Temp.
Watt
Lumens
Input
Size
T5 LED 5W WW
3000K (±150k)
5W
165
110V to 240V
7/8"W 1-5/8"H 12-1/2"L
T5 LED 5W CW
4100K (±150k)
192
T5 LED 5W DL
6400K (±150k)
200
New Product Sales!
T5 LED 9 Watt Linkable Fixture (2ft) LED T5 light fixture. Integrated LED driver, just plug-in & lit. No other power supply or accessories needed.
Conforms to UL Std. 153, ETL Listed. 9 watt LED T5 comparable to 14 watt T5 Microfluorescent
SKU #
Color Temp.
Watt
Lumens
Input
Size
T5 LED 9W WW
3000K (±150k)
9W
324
110V to 240V
7/8"W 1-5/8"H 22-4/5"L
T5 LED 9W CW
4100K (±150k)
384
T5 LED 9W DL
6400K (±150k)
401
New Product Sales!
T5 LED 13 Watt Linkable Fixture (3ft) LED T5 light fixture. Integrated LED driver, just plug-in & lit. No other power supply or accessories needed.
Conforms to UL Std. 153, ETL Listed. 13 watt LED T5 comparable to 21 watt T5 Microfluorescent
SKU #
Color Temp.
Watt
Lumens
Input
Size
T5 LED 13W WW
3000K (±150k)
13W
490
110V to 240V
7/8"W 1-5/8"H 34-3/5"L
T5 LED 13W CW
4100K (±150k)
576
T5 LED 13W DL
6400K (±150k)
602
New Product Sales!
T5 LED 17 Watt Linkable Fixture (4ft) LED T5 light fixture. Integrated LED driver, just plug-in & lit. No other power supply or accessories needed.
Conforms to UL Std. 153, ETL Listed. 17 watt LED T5 comparable to 28 watt T5 Microfluorescent
SKU #
Color Temp.
Watt
Lumens
Input
Size
T5 LED 17W WW
3000K (±150k)
17W
653
110V to 240V
7/8"W 1-5/8"H 46-2/5"L
T5 LED 17W CW
4100K (±150k)
768
T5 LED 17W DL
6400K (±150k)
804
New Product Sales!
T5 LED 21 Watt Linkable Fixture (5ft) LED T5 light fixture. Integrated LED driver, just plug-in & lit. No other power supply or accessories needed.
Conforms to UL Std. 153, ETL Listed. 21 watt LED T5 comparable to 35 watt T5 Microfluorescent
SKU #
Color Temp.
Watt
Lumens
Input
Size
T5 LED 21W WW
3000K (±150k)
21W
816
110V to 240V
7/8"W 1-5/8"H 58-1/5"L
T5 LED 21W CW
4100K (±150k)
960
T5 LED 21W DL
6400K (±150k)
1003
New Product Sales!
LED T5 Replacement Light Tube LED T5 light tubes is designed to replace the traditional T5 fluorescent lamps. They are compatible with our LED T5 fixtures or can be retrofitted to any fixture that accepts T5 bi-pin sockets *(LED power supply needed to order separately).
SKU #
Color Temp.
Watt
Diameter
Input
Length
T5-LED-5W-RPL
3000K 4100K 6400K
(±150k)
5 W
5/8"
24V DC
12-1/2"L
T5-LED-9W-RPL
9 W
22-4/5"L
T5-LED-13W-RPL
13 W
34-3/5"L
T5-LED-17W-RPL
17 W
46-2/5"L
T5-LED-21W-RPL
21 W
58-1/5"L

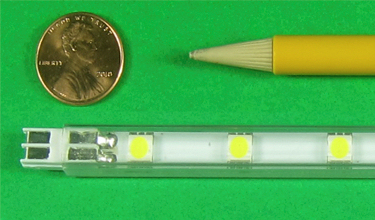

Mini LED Stick LED Light (Linkable) NEW Mini LED Stick LED Light (Linkable) • Economically priced LED Lighting solution • UL Listed power supply. • Supplied with 3M™ Peel & Stick Tape • Dual mounting clips also included. • Long life LEDs rated up to 50,000 hrs • Ultra bright, ultra compact design: 3/8"W x 5/16"H • Use little energy: 8" = 1.8 Watt; 12" = 2.4 Watt
Mini LED Stick Light LED Driver • UL Listed power supply. • Supplied with a 6 ft. lead wire with DC mini jack
SKU #
Wattage
Link up to (8" LED Stick)
Link up to (12" LED Stick)
12WLED-DRV
12 Watt
6 pcs
5 pcs
36WLED-DRV
36 Watt
20 pcs
15 pcs
Mini LED Stick Light Cable Connector • Male to female cable connector for Mini LED Stick Light. • For a 90° turn, use a 4" connector • Available in 4", 12", 24", 36", 48" and 72".
Mini LED Stick Light Power Connector • Mini DC Jack connector for Mini LED Stick Light. • Length: 12" • A power connector is needed to establish each power run
[SKU: UCL-3WP-3KIT-BN] LED Puck Light Kit Finish: Brushed Nickel. Complete 3-light kit includes LED driver and all necessary connector and wires.
Recessed or surface mounting
2-3/4"Dia.x 3/4"H (surface) or 5/8"H (recessed mount)
Each LED puck light supplied with a 36" connecting cable
Wattage: 3 x 1 watt per fixture, 3 fixtures per kit
Lumens: 228, our brightest LED Puck Light
UL (US & Canada)
[SKU: UCL-3WP-3KIT-CH] LED Puck Light Kit Finish: Chrome Complete 3-light kit includes LED driver and all necessary connector and wires.
Recessed or surface mounting
Each LED puck light supplied with a 36" connecting cable
Wattage: 3 x 1 watt per fixture
Lumens: 228, our brightest LED Puck Light
UL (US & Canada)
Promotional Sales! $30.00 OFF - Limited Time Only
[SKU: UCL-3WP-3KIT-BK] LED Puck Light Kit Finish: Black Complete 3-light kit includes LED driver and all necessary connector and wires.
Recessed or surface mounting
Each LED puck light supplied with a 36" connecting cable
Wattage: 3 x 1 watt per fixture
Lumens: 228, our brightest LED Puck Light
UL (US & Canada)
Promotional Sales! $30.00 OFF - Limited Time Only
[SKU: UCL-3WP-3KIT-WT] LED Puck Light Kit Finish: White Complete 3-light kit includes LED driver and all necessary connector and wires.
Recessed or surface mounting
Each LED puck light supplied with a 36" connecting cable
Wattage: 3 x 1 watt per fixture
Lumens: 228, our brightest LED Puck Light
UL (US & Canada)
Promotional Sales! $30.00 OFF - Limited Time Only
[SKU: UCL-3WP-BN] 3 x 1 Watt LED Puck Light Finish: Brushed Nickel LED puck light single pack, power supply & accessories NOT included (order separately)
Recessed or surface mounting
Supplied with a 36" connecting cable
Wattage: 3 x 1 watt
Lumens: 228, our brightest LED Puck Light
UL (US & Canada)
[SKU: UCL-3WP-CH] 3 x 1 Watt LED Puck Light Finish: Chrome LED puck light single pack, power supply & accessories NOT included (order separately)
Recessed or surface mounting
Supplied with a 36" connecting cable
Wattage: 3 x 1 watt
Lumens: 228, our brightest LED Puck Light
UL (US & Canada)
[SKU: UCL-3WP-BK] 3 x 1 Watt LED Puck Light Finish: Black LED puck light single pack, power supply & accessories NOT included (order separately)
Recessed or surface mounting
Supplied with a 36" connecting cable
Wattage: 3 x 1 watt
Lumens: 228, our brightest LED Puck Light
UL (US & Canada)
[SKU: UCL-3WP-WT] 3 x 1 Watt LED Puck Light Finish: White LED puck light single pack, power supply & accessories NOT included (order separately)
Recessed or surface mounting
Supplied with a 36" connecting cable
Wattage: 3 x 1 watt
Lumens: 228, our brightest LED Puck Light
UL (US & Canada)
[SKU: 9WLED-DVR] 9 Watt LED Puck Light Driver
30VDC 300mA
Supports up to 3 LED puck light fixtures
3 prong 6ft power cord & a 6-outlet junction box included
UL (US & Canada)
[SKU: 10WLED-HWDVR] 10 Watt LED Puck Light Driver Hardwire LED power supply complies with all electrical codes requiring transformers to be housed in enclosures.
Standard size knock out for BX or non-metalic cable
Input: 120VAC, Output: 350mA (2-29VDC)
Supports up to 3 LED puck light fixtures
3ft lead wire & a 6-outlet junction box included
Dimension: 6-5/8"L x 1-5/8"W x 1-1/8"H
General illumination applications that may most benefit from the LED T5 light fixtures including the following:
Under-cabinet lighting
In-cabinet accent lighting
Adjustable task lighting
Refrigerated case lighting
Accent lights
Step and path lighting
Cove lighting
Spaces with occupancy sensors
Food preparation areas
Retail display cases
Art display lighting
LED T5 Replacement Retrofit (T5 Fluorescent) Instruction
(Updated: 2/1/2011)
Caution: Operating and repairing electrical equipment can be extremely dangerous, consult a licensed electrical professional before proceed.
1. Disconnect power from main source or at electrical breaker.
2. Remove the T5 fluorescent lamps and verify whether the T5 fluorescent fixtures have replaceable ballast(s).
3. Open the fixture and remove the T5 fluorescent ballast(s) from the existing fixture.
4. Replace the ballast with a compatible LED driver and wire the hot (black) and neutral (white) wires accordingly. (A dimmable LED driver can also be used. Check OEM instruction for
compatibility)
5. Install the LED T5 replacement tubes.
6. Close the fixture and secure all fasteners, clips and sockets.
Heat Dissipation and Lifespan of LED T5 Lights
(Updated: 12/10/2010)
LEDs, or light emitting diodes, are a solid-state lighting technology that employs semiconducting elements to generate light. Simply put LEDs are electronic microchips that are capable of generating lights as electric current flows across the diodes. LEDs have several advantages over conventional incandescent or fluorescent lamps. For one thing, they don't have a filament that will burn out, so they last much longer. Additionally, their compact design makes them more durable and easier to fit into modern lighting designs like LED T5 lights and LED puck lights. LED T5 and LED puck lights have became extremely popular and effective for residential and commercial applications such as under cabinet lighting, display lighting, cove lighting, accent lighting and others.
Solid state devices such as T5 LED Lights are subject to very limited wear and tear if they are installed at a proper operating environment. Many of the LEDs made in the 1970s and 1980s are still in service today. Like other lighting devices, LED performance is temperature dependent. Typical lifetimes rated are 25,000 to 100,000 hours but heat and current settings can extend or shorten the performance. Our LED T5 lights are small, durable and need little power. In addition, the dual heat-sinking design of our LED T5 light fixture keeps the heat dissipated away from the lighting diodes and protected the integrity and longevity of the LED T5 lights.
What makes T5 LEDs different from other lights?
(Updated: 10/11/2010)
LEDs are semiconductor devices, while incandescent, fluorescent, and high-intensity discharge (HID) lamps are all based on glass enclosures containing a filament or electrodes, with fill gases and coatings of various types.
LED T5 light fixtures start with a tiny chip (commonly SMD3528 and SMD5050, will explain in later session). Each individual chip is comprised of layers of semi-conducting material mounted on heat-conducting material and enclosed in an encapsulating silicone. Then an array of LED chips are mounted on a linear circuit board and incorporated into a precision engineered 5/8" (T5) diameter heat dissipating structure. The final product is our extremely durable long-life energy saving LED T5 lighting device.
T5 LED Fixtures and Lamps
Upgraded from current Slim T5 fluorescent fixtures, our new Slim T5 LED fixtures offer you a next generation of energy saving LED lighting solution. Simply unplug the existing T5 fluorescent fixtures & plug-in the new T5 LED fixtures and your upgrade is completed. For new installation, all of the following components accessories are included with our T5 LED fixtures:
(1) T5 LED fixture with a T5 LED light tube
(1) 6 ft. 3 prong power cord,
(1) 6 inch flexible connector,
(1) End-to-end connector,
(2) Stainless steel mounting clips
Our T5 LED lighting fixtures are excellent replacements for the traditional T5 fluorescent lights that you can find in most offices, stores and homes. The T5 LED light fixtures have a much longer life time than the traditional T5 fluorescent fixtures - rated up to 50,000 hours, equivalent to 8,000 to 10,000 working days.
Besides energy saving, in comparison to the traditional T5 fluorescent light fixtures, T5 LED fixtures are also cost saving in terms of replacement and maintenance. Our T5 LED lights do not contain mercury. Therefore no special disposing protocol is needed as that of disposing fluorescent lamps. Above all, the biggest advantage of the T5 LED light tubes is its shatter-Proof design - it will not break even if it was dropped accidentally because there is no glass component in our T5 LED fixtures.
The new slim T5 LED light fixtures are engineered with precision. The light output is evenly distributed - eliminate eye strain and headaches associated with flickering fluorescent lamp operation. At the same light effect (same luminous flux) our T5 LED light tubes use much less LED’s than those on the market, thus less heat generated, longer life, and less light fading.
The T5 LED light tubes can be widely used in homes, offices, hotels, shopping malls, super markets, restaurant and many other residential and commercial spaces.
